Horizontal Surveys & Measurement Methods

Learning Objectives

After completing this topic, you should be able to:

• Compute latitude and departure from bearing and distance
• Calculate traverse misclosure and precision ratio
• Adjust a traverse using the Compass Rule
• Compute coordinates from traverse data
• Calculate area using the coordinate method (double meridian distance or cross-multiply)
• Convert between bearings and azimuths
• Perform basic COGO computations (inverse, intersection, resection)

Overview

Horizontal surveys determine the positions of points in a two-dimensional horizontal plane. The mathematical methods used to compute positions, check accuracy, and calculate areas from field measurements form the core of Coordinate Geometry (COGO) -- arguably the most computation-heavy topic on the FS exam.

You should expect multiple FS exam questions requiring traverse computations, area calculations, and bearing/azimuth conversions.

---

Key Concepts

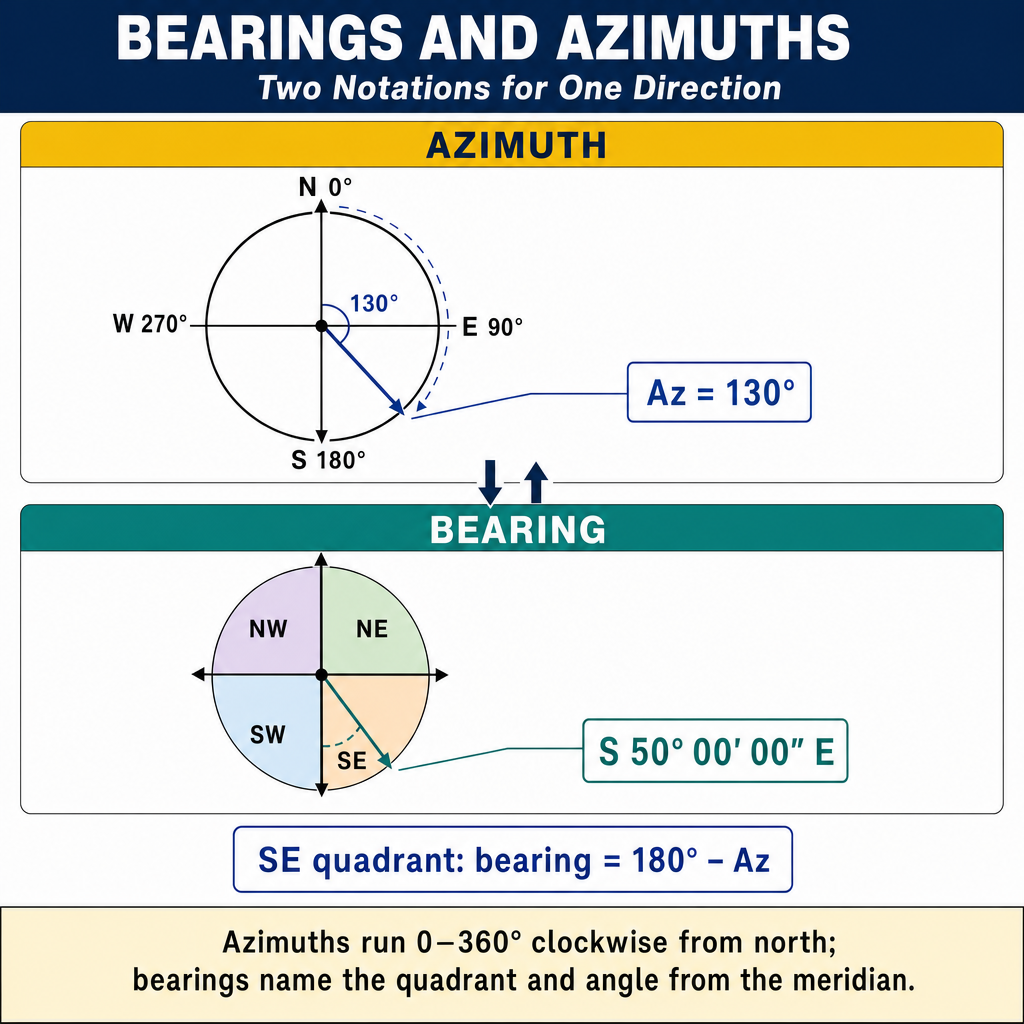

Bearings and Azimuths

Bearing: Direction measured from north or south toward east or west, expressed in the quadrant system (e.g., N 45°00′ E). Range: 0 to 90 degrees in each quadrant.

Azimuth: Direction measured clockwise from north, from 0 to 360 degrees (e.g., 135°00′ = S 45°00′ E).

Conversions:

Quadrant	Bearing	Azimuth
NE	N alpha E	alpha
SE	S alpha E	180 - alpha
SW	S alpha W	180 + alpha
NW	N alpha W	360 - alpha

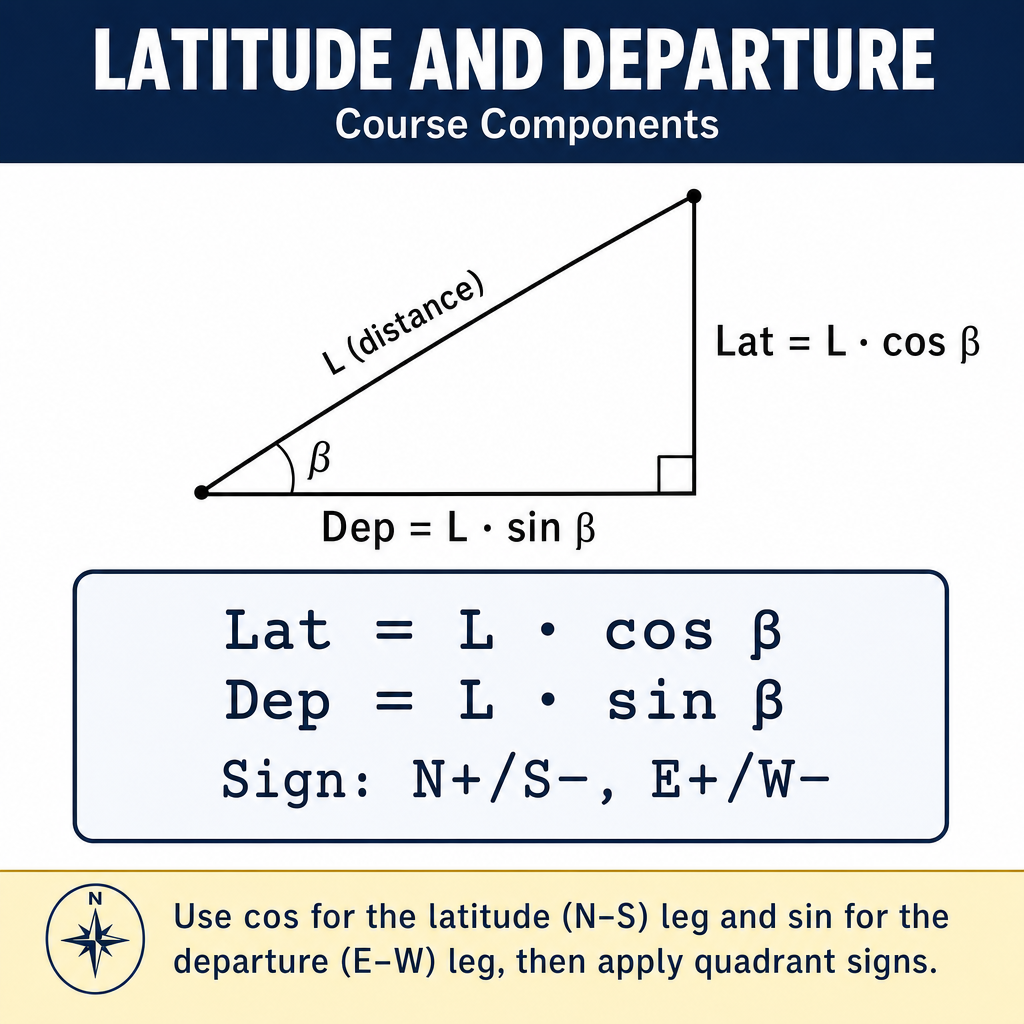

Latitude and Departure

For each traverse course, latitude is the north-south component and departure is the east-west component:

$\text{Latitude} = D \times \cos(\text{bearing angle})$ $\text{Departure} = D \times \sin(\text{bearing angle})$

Where D is the horizontal distance.

Sign conventions:

• North latitudes are positive; south latitudes are negative
• East departures are positive; west departures are negative

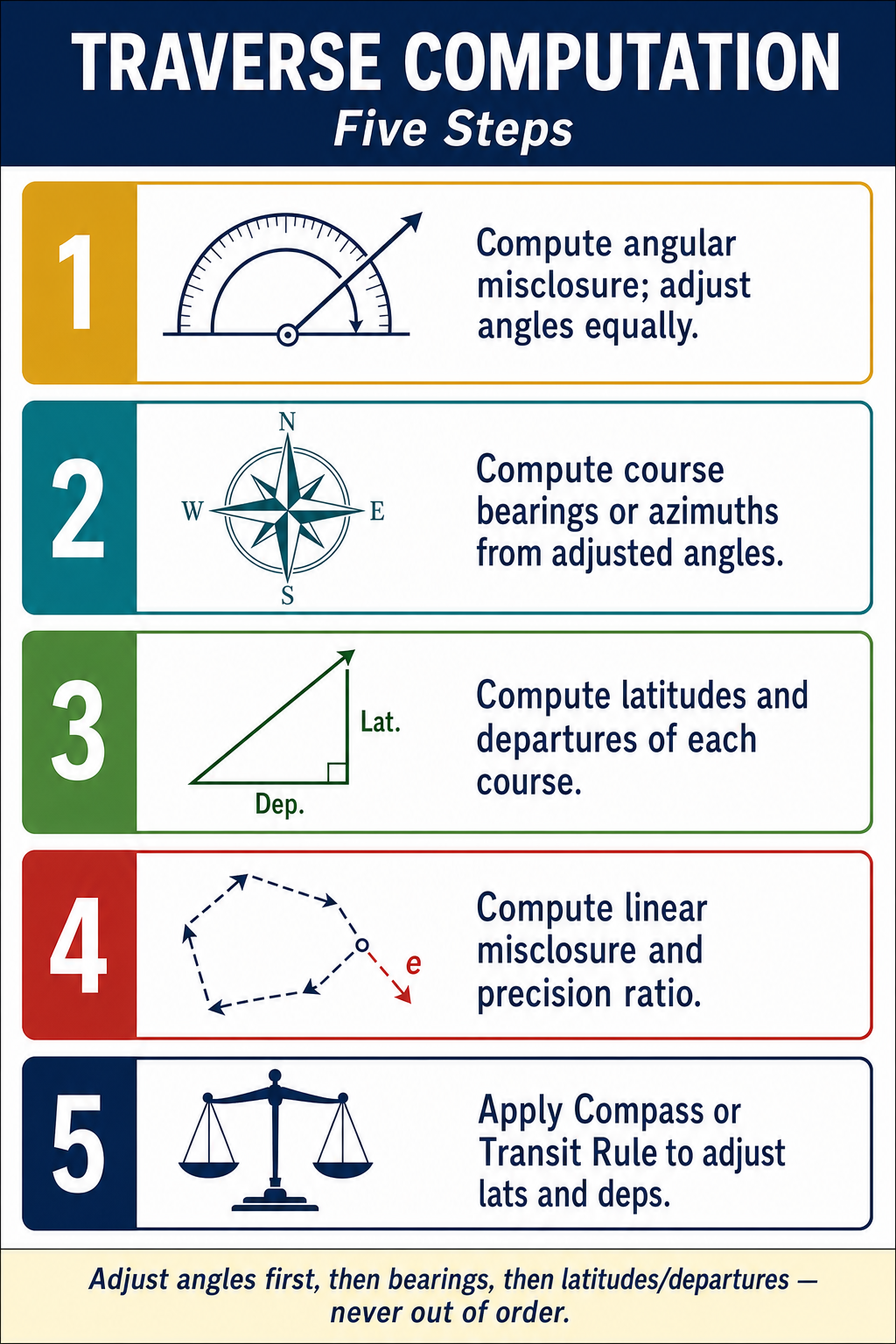

Traverse Computation

Step-by-step procedure:

1. Balance angles: Distribute the angular misclosure equally among all angles (or weighted by judgment)
2. Compute bearings/azimuths from the adjusted angles and the starting bearing
3. Compute latitudes and departures for each course
4. Sum latitudes and departures: In a closed traverse, the sums should be zero. Any non-zero sum is the misclosure

$\text{Misclosure in Lat} = \sum \text{Latitudes}$ $\text{Misclosure in Dep} = \sum \text{Departures}$

1. Compute linear error of closure:

$\text{Linear Error} = \sqrt{(\sum Lat)^2 + (\sum Dep)^2}$

1. Compute precision ratio:

$\text{Precision} = \frac{\text{Linear Error}}{\text{Total Traverse Length}} = \frac{1}{n}$

1. Adjust the traverse if the precision is acceptable

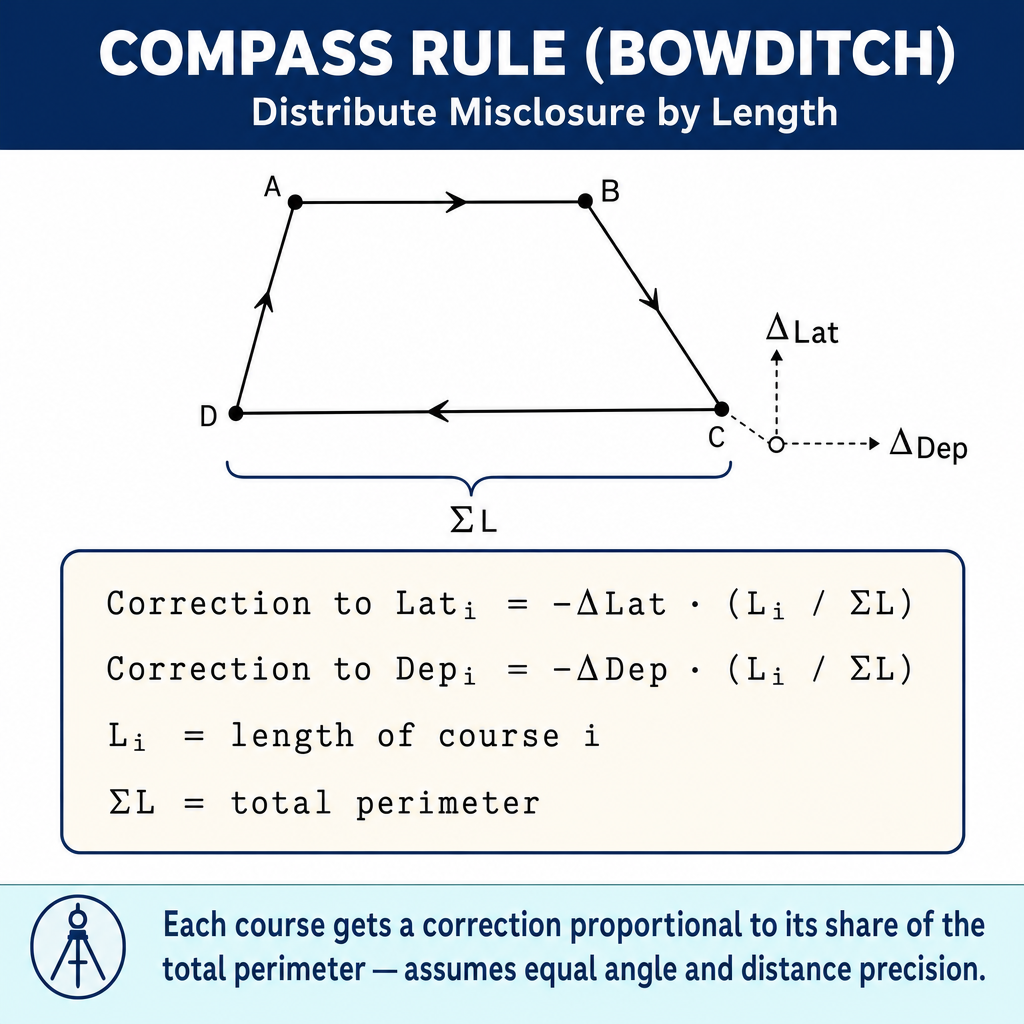

Compass Rule (Bowditch) Adjustment

The Compass Rule distributes the misclosure proportionally to the length of each course:

$\text{Correction to Lat}_i = -\frac{\sum Lat \times D_i}{\sum D}$ $\text{Correction to Dep}_i = -\frac{\sum Dep \times D_i}{\sum D}$

Where Di is the length of course i and the summation of D is the total traverse length.

After adjustment: Adjusted Latitude = Original Latitude + Correction

Computing Coordinates

Starting from a known point, compute sequential coordinates:

$N_B = N_A + \text{Adjusted Latitude}_{AB}$ $E_B = E_A + \text{Adjusted Departure}_{AB}$

Area Computation

Coordinate method (cross-multiply):

$2A = \sum_{i=1}^{n} (N_i \times E_{i+1} - N_{i+1} \times E_i)$

Where the subscript wraps around (point n+1 = point 1).

Example with 3 points:

$2A = (N_1 E_2 - N_2 E_1) + (N_2 E_3 - N_3 E_2) + (N_3 E_1 - N_1 E_3)$

Take the absolute value and divide by 2 to get the area.

Unit conversions for area:

• 1 acre = 43,560 sq ft
• 1 hectare = 10,000 sq m
• 1 acre = 0.4047 hectares
• 1 sq mile = 640 acres

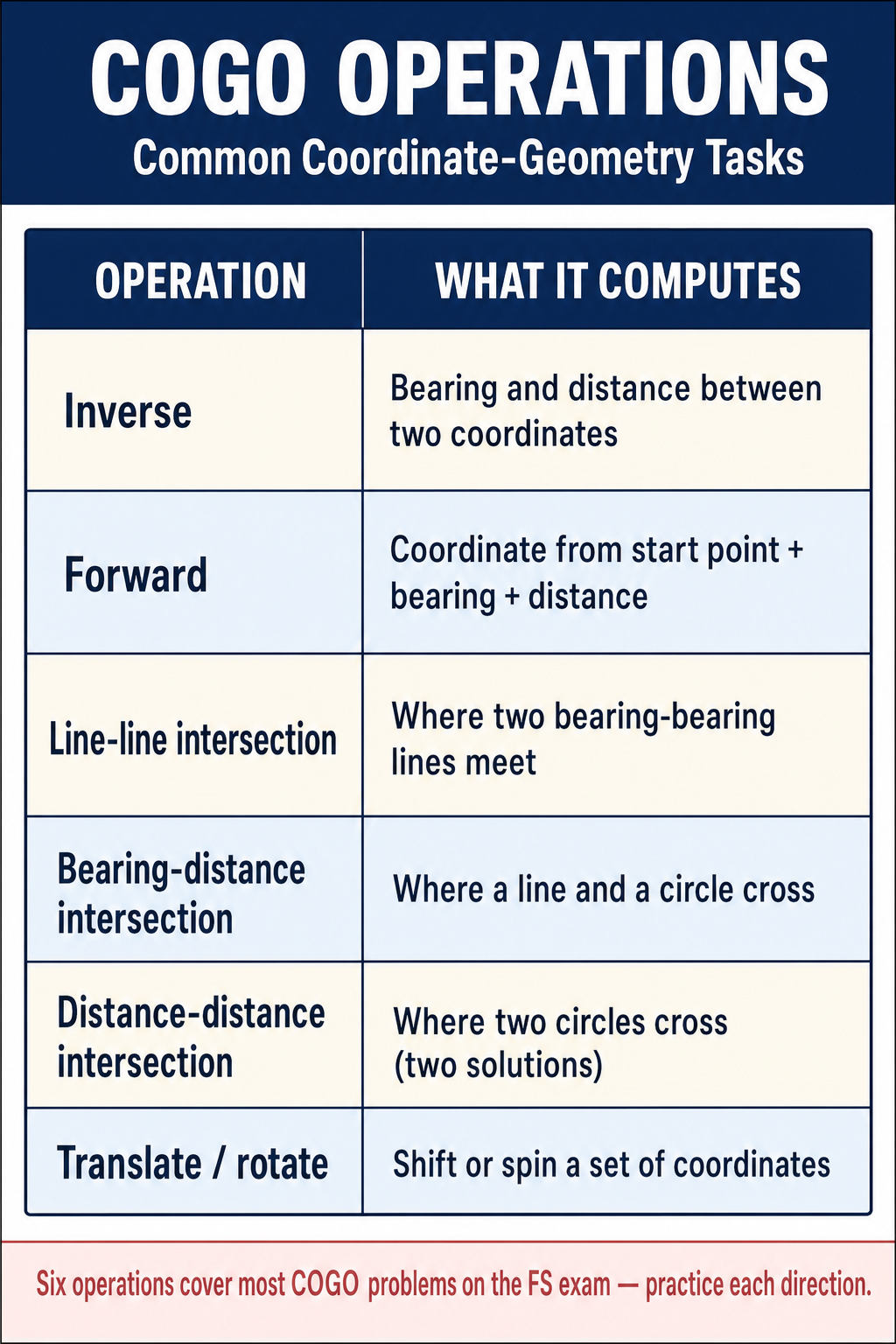

COGO Operations

Inverse: Given coordinates of two points, compute the bearing and distance between them.

$D = \sqrt{(\Delta N)^2 + (\Delta E)^2}$ $\text{Azimuth} = \arctan\left(\frac{\Delta E}{\Delta N}\right)$

(Adjust the quadrant based on the signs of delta-N and delta-E.)

Intersection: Compute the coordinates of a point defined by the intersection of two lines (bearing-bearing intersection, bearing-distance intersection, or distance-distance intersection).

Resection: Determine the position of an unknown point by observing angles or distances to three or more known points.

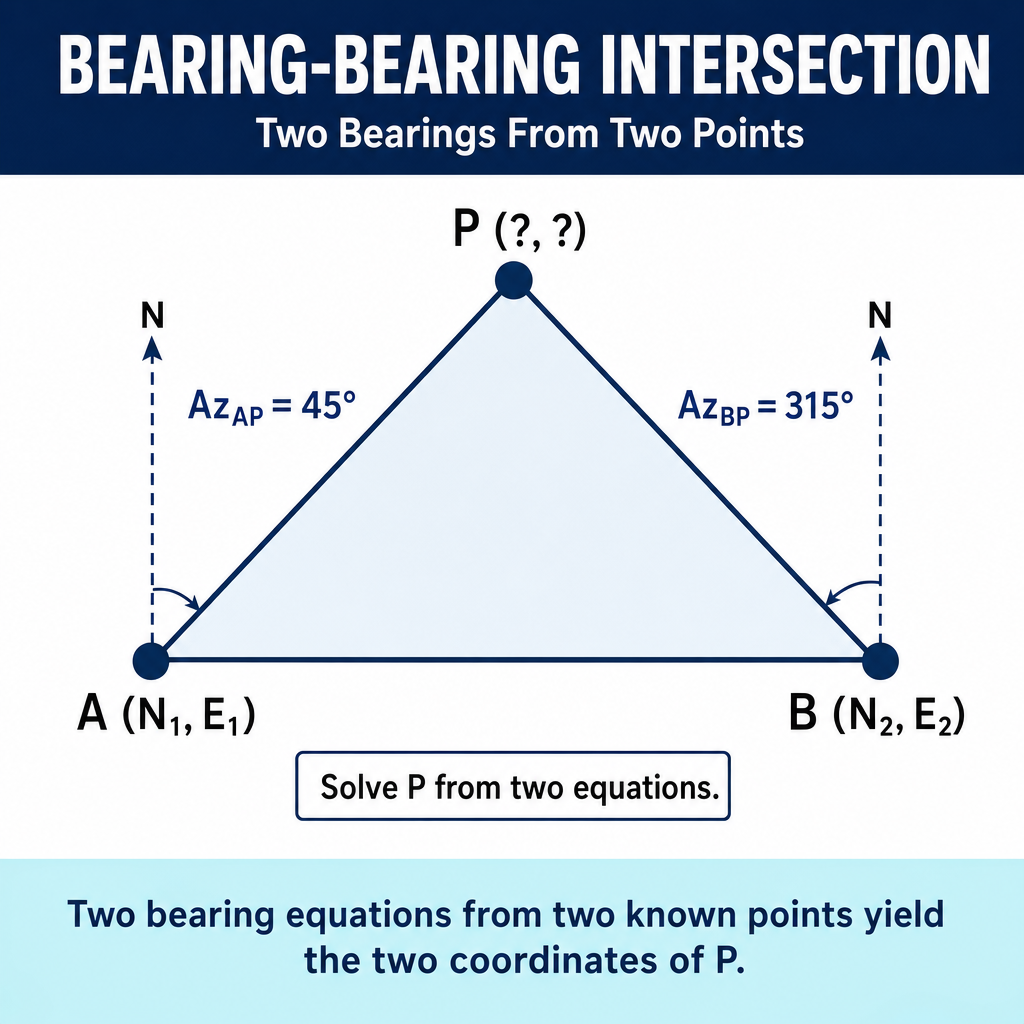

Bearing-Bearing Intersection Example

Given point A (1000, 1000) with bearing N 60°00′ E, and point B (1500, 1200) with bearing N 30°00′ W, find the intersection point:

• Set up parametric equations for each line
• Solve the simultaneous equations for the intersection coordinates
• This is a common FS exam problem type

Common wrong path — using the weak case of resection. A three-point resection determines the unknown position of an occupied point by observing angles to three known stations. The math is clean except when the three known stations and the occupied point all lie on (or near) a common circle — this is the "dangerous circle" or "weak case," where the intersection becomes mathematically indeterminate and small observation errors blow up into large position errors. Students sometimes pick three known stations without checking geometry, then get wildly inaccurate results without understanding why. Before committing to a resection, sketch the four points (three known + one unknown) and verify they do NOT fall near a common circle — the strongest geometry has the unknown point well inside the triangle formed by the three known points. Exam questions bait this by describing a resection scenario with poor geometry and asking why the results are unreliable; the answer is "proximity to the dangerous circle," not measurement error.

Quick retrieval check — try before reading on.

▶A surveyor needs to determine the coordinates of an unknown point P by resection. Three NGS monuments A, B, C are available within 2 km. The surveyor observes horizontal angles APB = 45°00' and BPC = 30°00' at point P. Why might this resection produce a position with 10× higher uncertainty than the observed angle precision would suggest?

The most likely cause is weak geometry — the four points (A, B, C, and P) are at or near a common circle. In resection, observed angles APB and BPC define two circular arcs through the known stations; the unknown point P lies on both arcs. When the geometry places P near the circumcircle of triangle ABC, small angle-observation errors translate into large uncertainties perpendicular to that circle — the solution becomes ill-conditioned. The solution: add a fourth control station (so the resection is over-determined and the dangerous-circle issue is diluted) or reposition the rover so the unknown point is clearly inside the triangle formed by A, B, C. Other possibilities include multipath, pointing error on an obscured target, or a blundered identification of one of the known monuments — but the geometric issue is the most common exam answer for "unexpectedly poor resection accuracy."

---

Exam Tips

• Latitude = D x cos(bearing); Departure = D x sin(bearing) -- memorize this
• The Compass Rule adjusts proportionally to course length -- longer courses get larger adjustments
• Precision ratio = linear error / total length -- express as 1:n (e.g., 1:20,000)
• The coordinate area method is the most reliable; practice it until it is second nature
• 1 acre = 43,560 sq ft -- you will need this conversion
• When computing azimuths from coordinates, be careful about the quadrant (arctan alone does not identify the quadrant)
• The FS exam will have multiple traverse and COGO problems; speed and accuracy are essential
• Practice converting between bearings and azimuths quickly
• Know how to compute the inverse (bearing and distance from coordinates) -- this appears frequently
• Remember: north latitudes and east departures are positive; south and west are negative

---
